<div class="title">Examples </div> </div>
</div><!--header-->
<div class="contents">
<div class="textblock"><p>The following projects are available in the CMSIS-Zone repository on GitHub: <a href="https://github.com/ARM-software/CMSIS-Zone/tree/master/Examples">https://github.com/ARM-software/CMSIS-Zone/tree/master/Examples</a>. These examples demonstrate the usage of the CMSIS-Zone utility.</p>
<table class="doxtable">
<tr>
<th align="left">Example </th><th align="left">Description </th></tr>
<tr>
<td align="left"><a class="el" href="zTEMusca.html">Arm Musca-A1</a> </td><td align="left">Musca project </td></tr>
<tr>
<td align="left"><a class="el" href="zTELPC55.html">NXP LPC55S69</a> </td><td align="left">Single processor Cortex-M33 project with TrustZone setup </td></tr>
<tr>
<td align="left"><a class="el" href="zTESTM32L5.html">STMicroelectronics STM32L5</a> </td><td align="left">Single processor Cortex-M33 project with TrustZone setup </td></tr>
</table>
<h1><a class="anchor" id="zTExImport"></a>
Import examples</h1>
<p>Import the examples to Eclipse using the following flow:</p>
<ul>

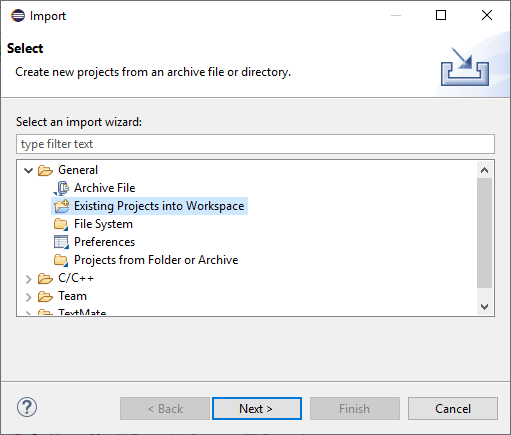

<li>Go to <b>File - Import</b> and select <b>General - Existing Projects into Workspace</b>:</li>
</ul>
<div class="image">
<img src="import_from_file.png" alt="import_from_file.png"/>
</div>
<p>Click <b>Next</b>.</p>

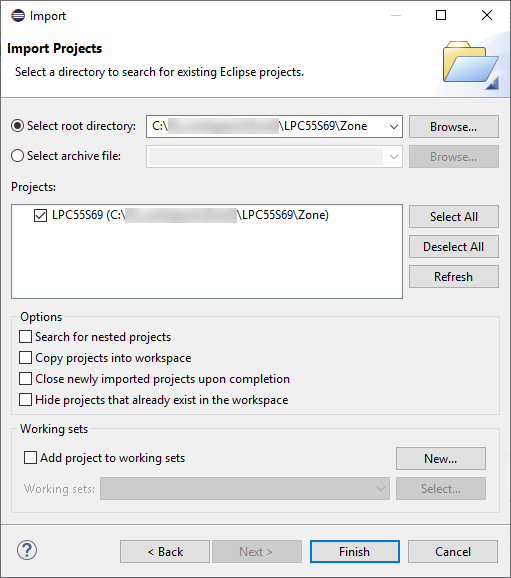

<p>Browse to the root directory, for example "Examples\LPC55S69\Zone", and select the project that you want to import. The import projects window shows the available projects:</p>
<div class="image">
<img src="import_projects.png" alt="import_projects.png"/>
</div>
<p>Click <b>Finish</b>. The project is imported and opened in the <a class="el" href="zTUI.html#zTProjEx">Project Explorer</a>. </p>
