<div class="title">Driver Validation </div> </div>
</div><!--header-->
<div class="contents">
<div class="textblock"><p>The <a href="http://www.keil.com/pack/" target="_blank">Software Pack</a> named <b>ARM::CMSIS-Driver_Validation</b> contains the following:</p>
<ul>
<li>Source code of a CMSIS-Driver Validation Suite along with configuration file.</li>
<li>Documentation of the CMSIS-Driver Validation Suite.</li>
<li>Examples that shows the usage of the CMSIS-Driver Validation Suite on various target platforms.</li>
</ul>
<p>The CMSIS-Driver Validation Suite performs the following tests:</p>
<ul>
<li>Generic Validation of API function calls</li>
<li>Validation of Configuration Parameters</li>
<li>Validation of Communication with loopback tests</li>
<li>Validation of Communication Parameters such as baudrate</li>
<li>Validation of Event functions</li>
</ul>
<p>The following CMSIS-Drivers can be tested with the current release:</p>
<ul>
<li><a class="el" href="group__can__interface__gr.html">CAN Interface</a> : with loop back test of communication.</li>
<li><a class="el" href="group__eth__interface__gr.html">Ethernet Interface</a> : MAC and PHY with loop back test of communication.</li>
<li><a class="el" href="group__i2c__interface__gr.html">I2C Interface</a> : only API and setup; does not test data transfer.</li>
<li><a class="el" href="group__mci__interface__gr.html">MCI Interface</a> : only API and setup; does not test data transfer.</li>
<li><a class="el" href="group__spi__interface__gr.html">SPI Interface</a> : with loop back test of communication.</li>
<li><a class="el" href="group__usart__interface__gr.html">USART Interface</a> : with loop back test of communication.</li>
<li><a class="el" href="group__usbd__interface__gr.html">USB Device Interface</a> : only API and setup; does not test data transfer.</li>
<li><a class="el" href="group__usbh__interface__gr.html">USB Host Interface</a> : only API and setup; does not test data transfer.</li>
</ul>
<p>The Driver Validation output can printed to a console, output via ITM printf, or output to a memory buffer.</p>
<h1><a class="anchor" id="test_output"></a>
Sample Test Output</h1>
<pre class="fragment">CMSIS-Driver Test Aug 24 2015 15:15:14
TEST 01: SPI_GetCapabilities PASSED
TEST 02: SPI_Initialization
DV_SPI.c(142) - Failed
TEST 03: SPI_PowerControl NOT EXECUTED
:
:
TEST 23: USART_Send
DV_USART.c(335) - Fail to send 1024 bytes
DV_USART.c(335) - Fail to send 2048 bytes
DV_USART.c(341) - Fail to send without callback 2048 bytes
:
:
Test Summary: 52 Tests: 42 Executed, 22 Failed.
653 Test Cases: 56 Errors(s), 12 Warning(s).
</pre><h1><a class="anchor" id="loop_back_setup"></a>
Setup for Loop Back Communication</h1>
<p>To perform loop back communication tests it is required to connect the input and the output of the peripherals as shown in this table:</p>
<table class="doxtable">
<tr>
<th align="left">Peripheral </th><th align="left">Loop Back Configuration </th></tr>
<tr>
<td align="left">Ethernet </td><td align="left">Connect TX+ (Pin 1) with RX+ (Pin 3), TX- (Pin 2) with RX- (Pin 6) </td></tr>
<tr>
<td align="left">SPI </td><td align="left">Connect MISO to MOSI </td></tr>
<tr>
<td align="left">USART </td><td align="left">Connect TX with RX </td></tr>
</table>

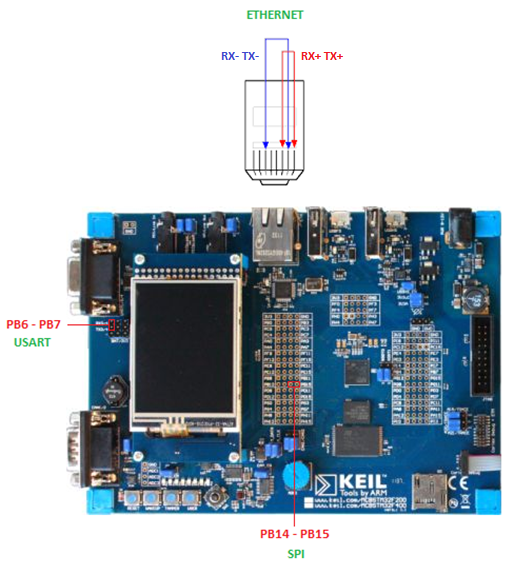

<p>The following picture shows the necessary external loop back connections for the Keil MCBSTM32F400 evaluation board:</p>
<ul>
<li>SPI: PB14 (SPI2_MISO) and PB15 (SPI2_MOSI)</li>
<li>USART: PB6 (USART1_TX) and PB7 (USART1_RX)</li>
<li>Ethernet: Pin 1 (TX+) and Pin 3 (RX+), Pin 2 (TX-) and Pin 6 (RX-)</li>
</ul>
<div class="image">
<img src="image006.png" alt="image006.png"/>
<div class="caption">
Connections for Loop Back Communication Tests on Keil MCBSTM32F400</div></div>
