<div class="title">User Interface </div> </div>
</div><!--header-->
<div class="contents">
<div class="textblock"><p>The CMSIS-Zone Utility user interface offers menus, toolbars, dialog boxes, and windows to manage the various aspects of your project.</p>
<h1><a class="anchor" id="zTGUI"></a>
CMSIS-Zone GUI</h1>
<p>The utility's GUI provides menus for selecting commands and toolbar buttons in the <a class="el" href="zTUI.html#zTGUIZoneEditor">Zone Editor</a> window:</p>
<div class="image">
<img src="GUI.png" alt="GUI.png"/>
</div>
<h1><a class="anchor" id="zTProjEx"></a>
Project Explorer</h1>

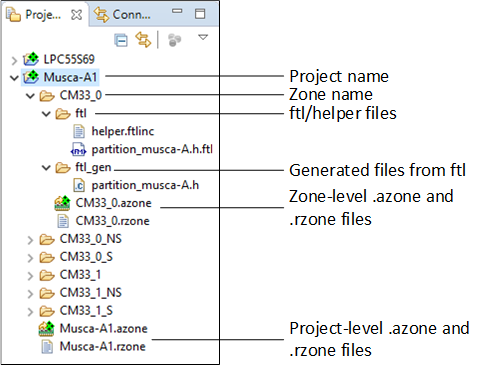

<p>Projects that are currently available in the Eclipse workspace are shown in the <b>Project Explorer</b>. When creating a new project, you will first find the <a class="el" href="zoneFormat.html#rzone">.rzone</a> and the <a class="el" href="zoneFormat.html#azone">.azone</a> files here. Later, generator files and generated files are shown as well:</p>
<div class="image">
<img src="ProjectExplorerWindow.png" alt="ProjectExplorerWindow.png"/>
<div class="caption">
Project Explorer window showing a complex project</div></div>
<p> In the <b>Project Explorer</b> window, you manage the project files. The following files are shown:</p>
<table class="doxtable">
<tr>
<th>File name </th><th>Description </th></tr>
<tr>
<td><code>project.azone</code> </td><td>Project-level <a class="el" href="zoneFormat.html#azone">.azone</a> file </td></tr>
<tr>
<td><code>project.rzone</code> </td><td>Project-level <a class="el" href="zoneFormat.html#rzone">.rzone</a> file </td></tr>
<tr>
<td><code>zone.azone</code> </td><td>Zone-level <a class="el" href="zoneFormat.html#azone">.azone</a> file </td></tr>
<tr>
<td><code>zone.rzone</code> </td><td>Zone-level <a class="el" href="zoneFormat.html#rzone">.rzone</a> file </td></tr>
<tr>
<td><code>*.ftl</code> </td><td>Freemarker template file used to <a class="el" href="GenDataModel.html">generate</a> output </td></tr>
<tr>
<td><code>helper.ftlinc</code> </td><td>Helper file to generate Freemarker output </td></tr>
<tr>
<td><code>*.sct,</code> <code>partition_*</code>.h </td><td>Generated output files </td></tr>
</table>
<h1><a class="anchor" id="zTGUIZoneEditor"></a>
Zone Editor</h1>
<p>The <b>Zone Editor</b> shows <a class="el" href="zoneFormat.html#azone">.azone</a> files in two different views: <b>Resource</b> <b>map</b> and <b>Zone</b> <b>map</b>.</p>

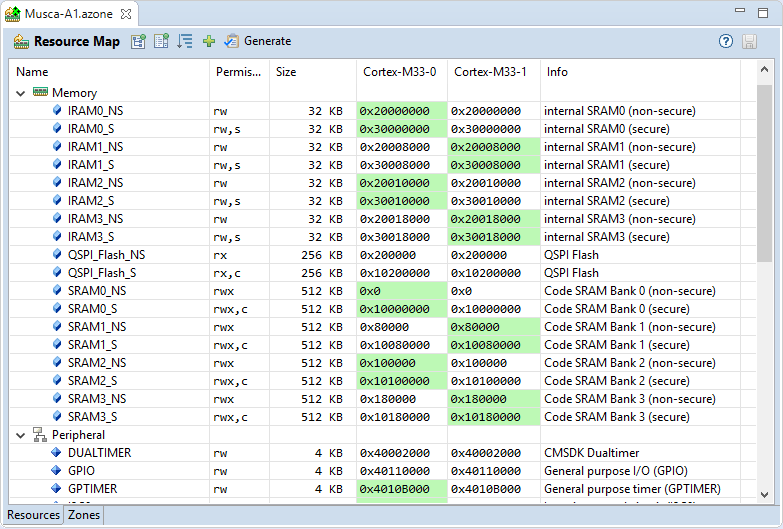

<p>The <b>Resource</b> <b>map</b> shows all resources available to that system or sub-system. By default, it shows the selected device, as well as lists of memories and peripherals:</p>
<div class="image">
<img src="resource_map.png" alt="resource_map.png"/>
</div>

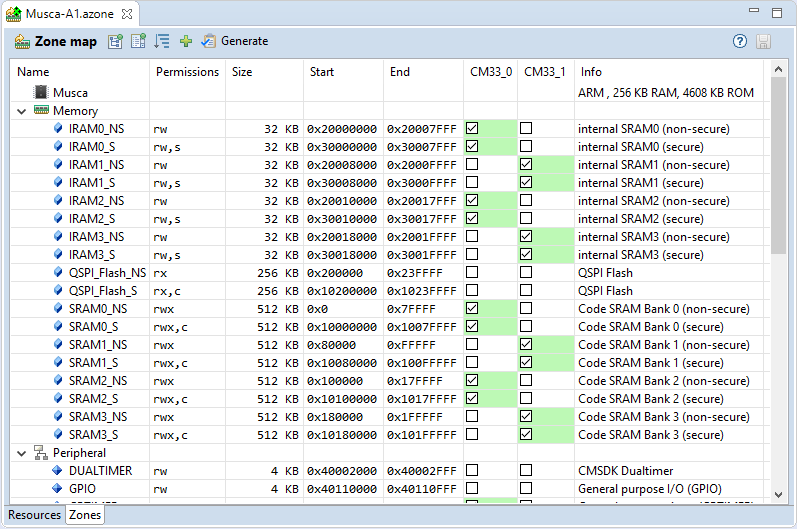

<p>The <b>Zone</b> <b>map</b> shows the same resources, but mapped to zones that have been created for the device:</p>
<div class="image">
<img src="zone_map.png" alt="zone_map.png"/>
</div>
<p>Resources assigned to a zone are marked with colors: </p>
<table class="doxtable">
<tr>
<th>Color </th><th>Meaning </th></tr>
<tr>
<td>Green </td><td>Resource is assigned to one zone </td></tr>
<tr>
<td>Amber </td><td>Resource is assigned to multiple zones </td></tr>
</table>
<h2><a class="anchor" id="zTGUIButtons"></a>
Toolbar Buttons</h2>
<p>The <b>Zone Editor</b> window contains toolbar buttons that offer direct access to functionality of the utility:</p>
<div class="image">
<img src="Buttons.png" alt="Buttons.png"/>
</div>
<table class="doxtable">
<tr>
<th>Button </th><th>Description </th></tr>
<tr>
<td>Tree View </td><td>Shows the resources as a tree </td></tr>
<tr>
<td>List View </td><td>Shows the resources as a simple list </td></tr>
<tr>
<td>Arrange memory regions </td><td>Arranges memory regions according to their sizes </td></tr>
<tr>
<td><a class="el" href="zTUIZonePart.html#zTUICreate">Add new zone</a> </td><td>Adds a new zone to the zone map </td></tr>
<tr>
<td><a class="el" href="zTUIGenerate.html">Generate</a> </td><td>Generates CMSIS-Zone output files </td></tr>
</table>
